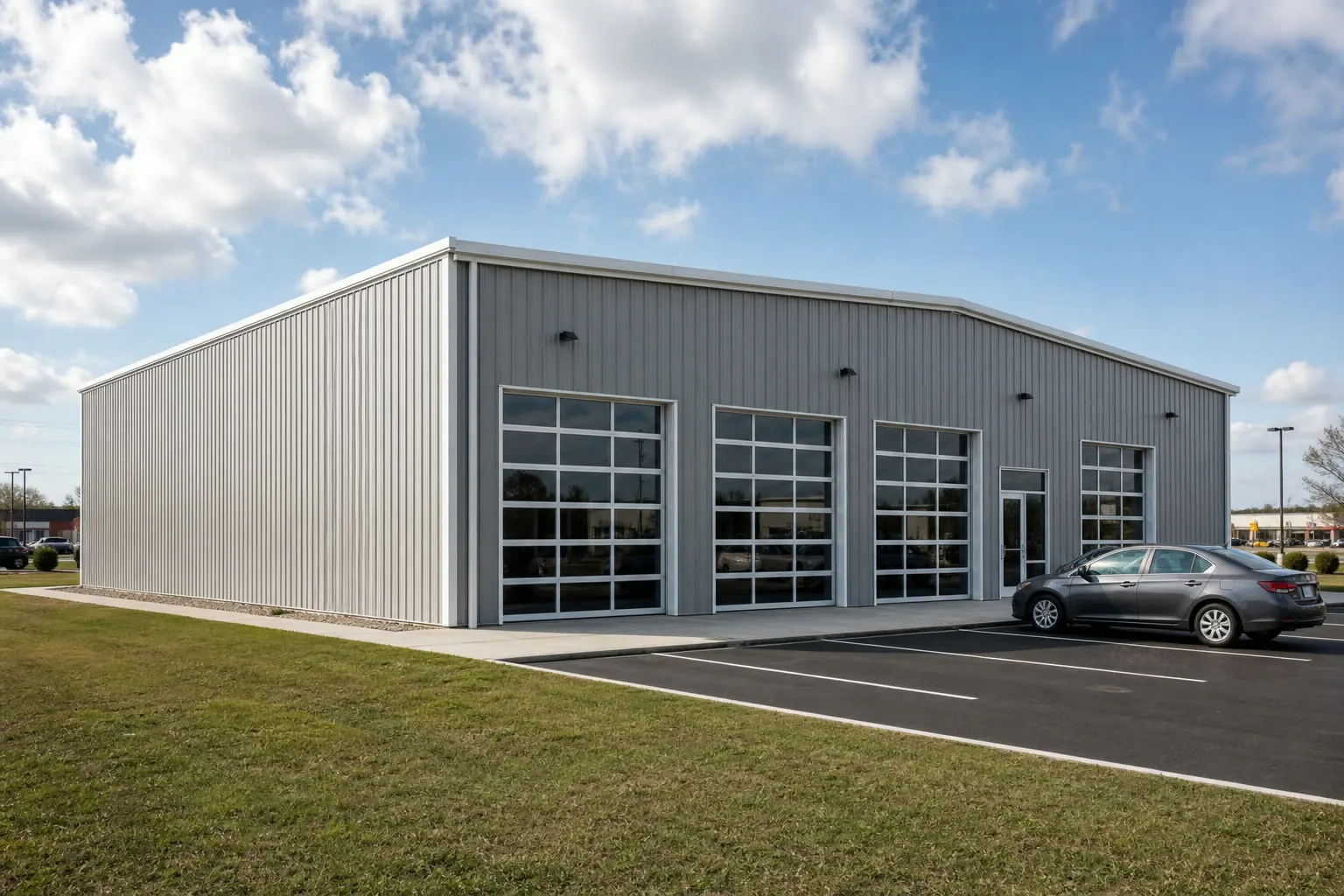

Prefab Auto Repair Shop

A steel building with service bays for vehicle repair. A steel building laid out around service bays, lifts and vehicle circulation rather than open floor area.

The buyer this suits is an operator whose revenue depends on how many vehicles can be worked on at once and how fast they move through. Operationally the building exists for service bays with vehicles in and out the same day, several times a day, and that is what separates it from a same-sized enclosure with a different label: bays perpendicular to the opening wall, each deep enough for a vehicle plus tool access at the front and both sides.

High turnover: vehicles arrive, occupy a bay, and leave, so the door count limits throughput. That access pattern, more than the footprint, is what the specification has to serve.

• service bays with vehicles in and out the same day, several times a day
• parts and tyre storage
• customer reception and waiting
• a diagnostic or alignment bay with its own requirements

Receive, stage, lift, work, road-test, release — a repeated cycle where every extra movement costs bay time.

Bays perpendicular to the opening wall, each deep enough for a vehicle plus tool access at the front and both sides. Parts and tyres go vertical near the bays; nothing consumes bay depth because bay depth is billable.

This page is written for independent shop owners and service operators.

Widening a near-square auto repair shop adds a parallel working position rather than margin, which is a step change rather than an improvement.

Depth increases travel more than capacity, so for a auto repair shop the arrangement has to be planned in modules rather than as one long run.

Height is a separate decision from footprint. For a auto repair shop it is driven by the vehicle raised on a lift with the roof still clear of lights and framing, with lift travel, which is the single item most likely to make a shop unusable if the eave is set to a parking standard as the second consideration.

A 40x50 auto repair shop is close to square, which changes the planning problem: there is no long axis to organise around, so receive, stage, lift, work, road-test, release — a repeated cycle where every extra movement costs bay time has to be arranged as a loop rather than a line.

Travel distance becomes a real cost. Vehicles queue, get parked, then get called into a bay, so the yard needs staging space distinct from the door apron, and inside the building the same logic applies: the arrangement that works at a quarter of this footprint usually wastes movement at full size.

On a square plan the opening wall is a real choice: one opening per service bay, because a shared door turns every job into a shuffle; a separate customer entrance keeps the public off the shop floor. Whichever wall carries it becomes the front of the building for good.

Support space is fully feasible and should be positioned to minimise travel from the working zones it serves.

• Constraint: bay count against door frontage
• Constraint: customer parking separate from staging
• Constraint: waste handling

• How many bays need their own door for the shop to run at the pace you plan?
• Does the eave height clear a vehicle at full lift travel, not just at ride height?
• Where do customers wait, and do they ever cross the working floor?

Power and services: bay-level power and compressed air, distributed so each bay is independent of the next.

Lighting: high output over each bay plus under-vehicle light, because shadow is the real hazard in a shop.

Ventilation: running engines and finishing work mean exhaust extraction and general air movement are planned, not improvised.

Insulation and envelope: technicians work in the space all day, so the envelope is a working-condition decision rather than a comfort nicety.

• Standing Seam Roofing
• Roll-Up Doors
• Framed Openings
• Gutters & Downspouts
• Concrete Slab
• Ridge Vent
• Red Iron Framing
• Purlins

A customer-facing shop mixes public and working areas, and how that mix is classified is decided by the authority having jurisdiction. Whether the work needs a permit, what it is set back from and which classification applies are decided by the authority having jurisdiction for the parcel under the code edition it has adopted and amended.

• Which code edition the jurisdiction has adopted, and its local amendments
• Whether the use classification changes with occupancy or conditioned space
• Site-specific setbacks, easements and zoning conditions
• Design wind and snow criteria assigned to the site
