Building Types
Metal Retail Buildings
Overview
Quick Overview
Category
Commercial — grouped with the buildings planned the same way.
Common uses
Uses vary by project; the planning sections below cover the common ones.
Common footprints
Footprints vary widely; the sizes below are common starting points rather than limits.
Sizes
Sizes Commonly Considered for a Retail Building
Useful starting points based on how this building is normally laid out — not a limit on what can be built.
Use
What Can a Retail Building Be Used For?
Customer-facing area
Frontage, entry placement and glazing are planned with local requirements in mind.
Back-of-house
Storage and staff areas are commonly separated from the public floor.
Parking and approach
Site circulation often has more effect on the layout than the building itself.
Future fit-out
Clear-span interiors leave partition placement to the fit-out stage.
Planning
Planning Decisions
Footprint
Width and length are chosen together: width is usually fixed by what has to fit side by side, length by how many bays are needed.
Height
Eave height affects door options, storage height and how open the interior feels.
Access
Where vehicles and people enter changes the whole interior layout, so access is settled before anything else.
Doors and openings
Opening width, height and position are specified with the supplier; they affect the frame and the wall bracing.
Site
Slope, drainage, access for delivery and erection, and the foundation are confirmed for the actual property.
Expansion
Extending along the length is usually simpler than changing the width later, which is worth deciding up front.
Gallery
Explore Example Configurations

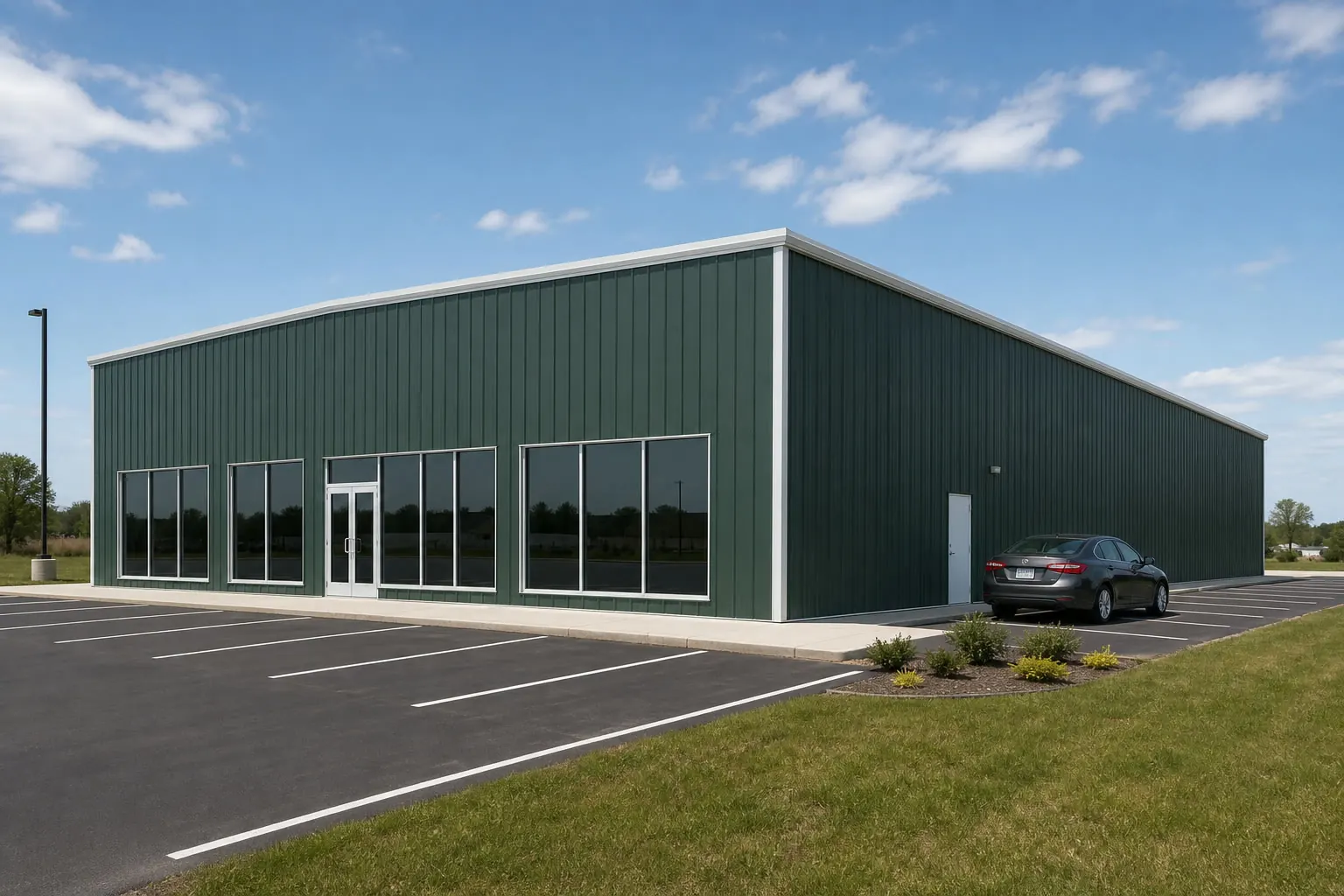

Example configuration — for planning purposes only.
Related
Related Building Types
Commercial Building
Planned the same way as a retail building.
Explore
Office Building
Planned the same way as a retail building.
Explore
Warehouse
Planned the same way as a retail building.
Explore
Restaurant Building
Planned the same way as a retail building.
Explore
Example configuration — for planning purposes only.
What this page answers
Specifying a steel building that customers walk into, not one that only staff use.
A retail building is a customer-facing building, and that changes almost every decision in the shell: where people enter, what they see, how goods arrive without crossing the shop floor, and how the front elevation carries signage. Those decisions belong at the frame stage, not at fit-out.
The front elevation is a shopfront
One elevation has to carry glazing, the entrance and signage. Deciding which one — and how much of it is glass — is a framing decision, because openings that size affect the wall structure.
Customers and deliveries need separate doors
A single opening serving both means stock crosses the sales floor. A dedicated service door at the back or side is the cheapest fix and it has to be positioned early.
Sales floor versus stockroom split
Retail plans are usually a large open front area and a smaller closed rear area. Where the dividing wall lands sets the sales area and the depth of the back-of-house.
Entry needs a transition zone
A door opening directly into merchandise causes congestion. A few feet of clear entry area inside the door is a layout requirement, not a luxury.
Parking and frontage face the same wall
The parking approach, the entry and the signage all compete for the same elevation, so they have to be planned as one thing.
Before you ask for a quote
The decisions that change what you should be quoted
Planning guidance for an early-stage decision. Nothing here is a price, a load figure or a code requirement.
What is being sold, and how big is it?
Large-format goods change aisle widths, door sizes and the ratio of stockroom to floor.
Is there a service counter or fitting area?
Fixed customer touchpoints anchor the plan and should be located before shelving.
How much of the front should be glazed?
Glazing sells, but it also removes usable wall and changes the shell — a trade to make consciously.
How does stock arrive?
Vehicle type and unloading position decide the service door and the yard layout.
Will accessibility and signage requirements apply?
They commonly do for public-facing buildings; confirm the specifics with your local authority and designer rather than assuming.
Related
Where the neighbouring questions are answered
Each link goes to the page that owns that question, so nothing is answered twice.
Definition
What a retail building is
A steel building configured for retail sales space. A steel shell arranged for retail trading, with frontage and customer access as the leading constraints.
The buyer this suits is an operator who needs customers to walk in, see product and buy it. Operationally the building exists for a sales floor customers move through, with stock held behind it, and that is what separates it from a same-sized enclosure with a different label: a glazed customer entrance sized and positioned for visibility from the parking area, plus a rear or side receiving opening that customers never see.
Continuous customer arrivals on foot from parking, plus a separate receiving pattern for stock. That access pattern, more than the footprint, is what the specification has to serve.
The retail building definition and operating profile above are this platform's own editorial typology, written for retailers and commercial developers. They contain no price, no code requirement and no engineered capacity.
Use patterns
What a retail building is used for
- a sales floor customers move through, with stock held behind it
- stockroom and receiving
- a service or checkout counter
- staff and office space
Customer enters, moves through the display, pays and leaves; stock moves the opposite way from the back — the two flows overlap only at the shelf.
An open sales floor with sightlines from the entrance, a checkout position near the exit, and a stockroom wall that customers do not cross. Stockroom depth is a trade against sales floor area, and the delivery interval decides where the line falls.
Stock received at a rear opening into the stockroom, so restocking crosses the sales floor only in small quantities.
This page is written for retailers and commercial developers.
Dimensions
The dimensional envelope recorded for retail building projects
Planning envelope recorded in this platform's retail building taxonomy
| Width | 40 to 80 feet of widthPlanning envelope, not a manufacturing limit |
|---|---|
| Length | 60 to 150 feet of lengthExtends along the bay module |
| Eave height | 14 to 20 feet of eave heightClearance below framing is lower than the eave |
The retail building ranges above are planning envelopes from this platform's typology. They are not engineered limits, not code minimums, and not a claim about what buyers most often order — a specific retail building can sit outside them.
Width at this band decides parallelism: whether two things happen side by side in the retail building or one behind the other.
Depth increases travel more than capacity, so for a retail building the arrangement has to be planned in modules rather than as one long run.
Height is a separate decision from footprint. For a retail building it is driven by the ceiling height that lets display fixtures and signage work without feeling compressed, with the display and signage strategy plus the service zone above the sales-floor ceiling as the second consideration.
Configurations
How retail building projects are configured
At 40x60 a retail building has a working proportion: enough width for the primary arrangement and enough depth to sequence it. This is the band where customer enters, moves through the display, pays and leaves; stock moves the opposite way from the back — the two flows overlap only at the shelf can be laid out as intended rather than compromised.
Travel distance becomes a real cost. Customer parking with clear sightlines to the entrance, and a receiving route that keeps delivery vehicles out of the customer area, and inside the building the same logic applies: the arrangement that works at a quarter of this footprint usually wastes movement at full size.
A glazed customer entrance sized and positioned for visibility from the parking area, plus a rear or side receiving opening that customers never see. At this proportion the sidewall becomes a genuine alternative to the gable end, which is not true at narrower widths.
Support space is fully feasible and should be positioned to minimise travel from the working zones it serves.
- Constraint: visibility of the entrance from parking
- Constraint: sales floor versus stockroom depth
- Constraint: accessibility and egress
The operating and support allocation allocation above is an example model for retail building planning, expressed in percentage shares. It is not survey data and does not describe a majority of projects.
Components
Components a retail building specification turns on
- Where does the entrance sit relative to how customers arrive?
- How deep does the stockroom need to be for your delivery interval?
- Does stock ever have to travel through the sales floor in quantity?
Power and services: display and accent lighting circuits, checkout power and signage supply.
Lighting: display-grade lighting on the sales floor and plain lighting in the stockroom — the sales floor lighting is a merchandising tool, not just illumination.
Ventilation: a public space conditioned through trading hours with doors opening constantly, which is its own design problem.
Insulation and envelope: conditioned all trading day with an entrance in regular use, so envelope and entrance detail work together.
- Standing Seam Roofing
- Roll-Up Doors
- Framed Openings
- Gutters & Downspouts
- Concrete Slab
- Ridge Vent
- Red Iron Framing
- Purlins
Sizes, spacings, gauges and capacities behind these decisions are engineering outputs for one retail building, produced by the manufacturer for the design loads at that site.
Code and permits
Permitting questions a retail building raises
Public retail occupancy, accessibility and egress are decided by the authority having jurisdiction for the parcel. Whether the work needs a permit, what it is set back from and which classification applies are decided by the authority having jurisdiction for the parcel under the code edition it has adopted and amended.
- Which code edition the jurisdiction has adopted, and its local amendments
- Whether the use classification changes with occupancy or conditioned space
- Site-specific setbacks, easements and zoning conditions
- Design wind and snow criteria assigned to the site
No requirement, setback, wind speed or snow load is stated as fact on this page. Confirm each item with the building department for the parcel before ordering.
Comparison
Types buyers compare this against
- Commercial Building
- Self Storage Building
- Auto Repair Shop
- Restaurant Building
- Steel Gymnasium
- Steel Church Building
- Aircraft Hangar
- Manufacturing Building
The nearest comparison in this platform's taxonomy is commercial building. The test is not the label but whether the alternative changes customer enters, moves through the display, pays and leaves; stock moves the opposite way from the back — the two flows overlap only at the shelf — that is where the two diverge.
Anchor the comparison on the items that carry cost and lead time here: sales floor planning, stockroom depth, commercial building comparison.
FAQ
Questions about retail building projects
A steel shell arranged for retail trading, with frontage and customer access as the leading constraints. It suits an operator who needs customers to walk in, see product and buy it, and it is planned around a sales floor customers move through, with stock held behind it.
Retail is planned around a customer route: entrance visibility, sales floor sightlines, a checkout position and a stockroom with its own receiving opening. An office is planned around fixed desk positions, partitioning, acoustics and a service core, with no public floor and no receiving door. The footprint is the only thing they share.
It follows the delivery interval rather than a rule of thumb. Frequent deliveries let the stockroom shrink and the sales floor grow; infrequent deliveries need depth at the back. Decide the interval first and the split follows.
Width at this band decides parallelism: whether two things happen side by side in the retail building or one behind the other. Depth increases travel more than capacity, so for a retail building the arrangement has to be planned in modules rather than as one long run. Settle the width first, because it is the dimension that cannot be extended later.
That is decided by the authority having jurisdiction for the parcel under the code edition it has adopted, and for a retail building the answer often turns on a sales floor customers move through, with stock held behind it. Confirm with the local building department rather than relying on a national answer.
Visibility of the entrance from parking. Does stock ever have to travel through the sales floor in quantity?
Methodology
Basis for this page
Sources and methodology
Find Steel Buildings dimensional records
Find Steel Buildings · Primary platform dataset · Tier 1 — code authority, standards body, primary dataset or manufacturer engineering
Supports: Stored nominal width, length, eave height, roof pitch and slab thickness for this subject.
International Building Code and International Residential Code
International Code Council · Model code · Tier 1 — code authority, standards body, primary dataset or manufacturer engineering
Supports: The framework of adopted codes and local amendments that decides permitting, separation and opening requirements. Cited as the governing framework, never as a local requirement.
- Dimensional figures: Width, length, eave height, roof pitch and nominal slab thickness come from this platform's stored record for the subject. Floor area, perimeter, wall area, roof area, ridge height and slab volume are computed from those inputs rather than transcribed.
- Operating profile: The operating profile for the retail building category — buyer intent, access pattern, layout, workflow, height drivers, constraints and cost drivers — is this platform's own editorial typology, maintained as first-party qualitative planning guidance. Prose sequence for this type follows its buyer-led section spine. Every profile field is authored for this type.
- Allocation and layout models: Layout splits are arithmetic on the stored footprint, published as example allocation models. They are not survey findings and do not describe what buyers most often choose.
- Clearance and opening guidance: Clearance and opening statements are planning guidance. Final dimensions depend on the selected door system, header detail and the manufacturer's engineering for the building.
Methodology notes
- Prices: No price figure appears on this page. Cost data is published on this platform only with a documented inclusion basis, a collection date and a named source.
Continue your research
Related planning topics
Background reading on the questions this page raises. None of these pages sells anything.
Explore sizes for a retail building
Start from the footprints this building type is normally specified in, then price the one that fits your site.
